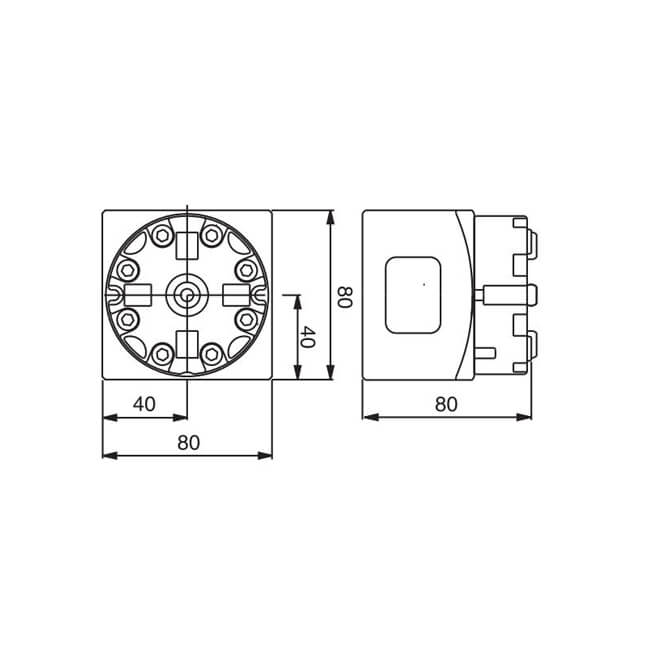

HPEDM 3R EDM machine manual chuck with plate HE-R06650
Compatible with 3R-610.21-S
Specifications:
Two ground faces for vertical or horizontal mounting on the
machine table.
• Required drawbar 3R-605.2
• Fixed index positions 4×90°
• Flushing duct
Application: on CNC EDM machine for EDM die sinking.
mount electrodes and workpieces
Mount: With bolts or clamps.
Repeatability: <0.005mm
HPEDM 3R EDM machine manual chuck with plate HE-R06650
Compatible with 3R-610.21-S
Specifications:
Two ground faces for vertical or horizontal mounting on the
machine table.
• Required drawbar 3R-605.2
• Fixed index positions 4×90°
• Flushing duct
Application: on CNC EDM machine for EDM die sinking.
mount electrodes and workpieces
Mount: With bolts or clamps.
Repeatability: 0.002-0.005mm
