Description

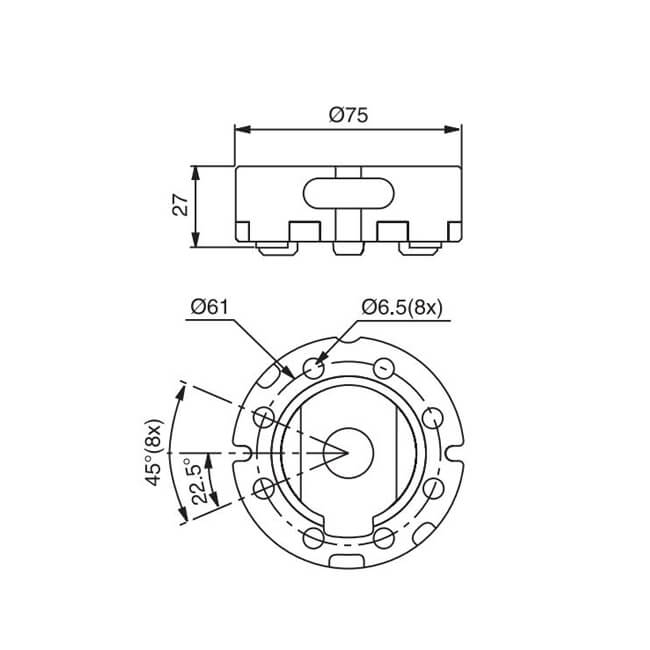

HPEDM 3R edm machine manual chuck HE-R06649
3R-600.24RS
Specifications:
Manual chuck designed for permanent mounting.
- Tightening torque 6 Nm
- Required drawbar 3R-605.2RS
- Clamping force 6000 N
- Fixed index positions 4×90º
- Rust resistant
Application: on CNC EDM machine for EDM die sinking.
mount electrodes and workpieces
On CNC sinker EDM machine center processing EDM electrode for plastic injection mould making industry.
Mount: With bolts or clamps.
Repeatability: 0.002mm
used on system 3R perfectly
HPEDM 3R EDM manual chuck for sinker EDM electrode die sinking
mouted on sinker EDM machine head,
Be used on system 3R EDM tooling system for EDM die sinker , Electrical discharge machining
HPEDM specializes in CNC EDM tool which can be compatible with system 3R EDM and WEDM tooling system. Repeatability: 0.002mm, very good price, saving 80% cost for you.
HPEDM 3R chuck includes manual chuck, pneumatic chuck for CNC machine, EDM machine, EDM die
sinking, EDM machining,
