HPEDM 3R Wire EDM machine super vice HE-R06668.p
compatible with system 3R-292.3p perfectly.
Version:

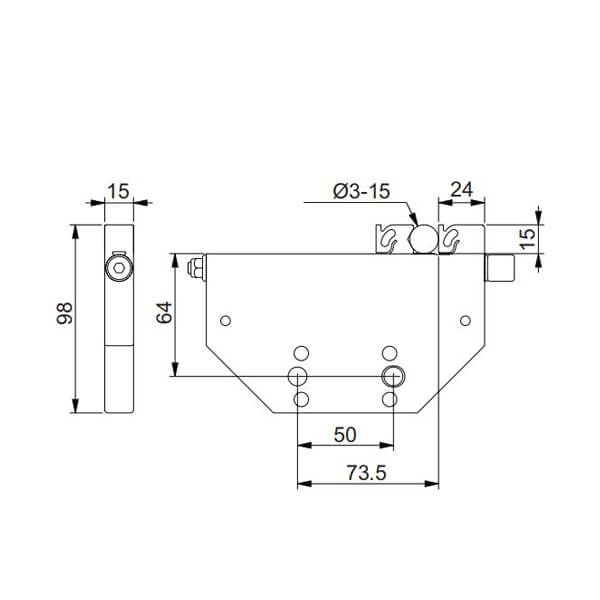

For vertical or horizontal collision-free clamping of round
workpieces (Ø 3-15 mm). Alternatively, rotate the movable jaw
and use as a regular 3R-292.3 vice for rectangular workpieces
(0-100 mm).
For clamping rectangular workpiece
up to 100mm.
Note: Tightening torque 7 Nm
Repeatability: 0.002-0.005mm.
Marterial: stainless steel .
Be used on wire EDM machine.
compatible with system 3R-292.3p perfectly.
HPEDM 3R Wire EDM machine super vice HE-R06668.p
compatible with system 3R-292.3p
Version:
For vertical or horizontal collision-free clamping of round
workpieces (Ø 3-15 mm). Alternatively, rotate the movable jaw
and use as a regular 3R-292.3 vice , for rectangular workpieces
(0-100 mm).
Note: Tightening torque 7 Nm
Repeatability: 0.002-0.005mm.
Marterial: stainless steel .
Be used on wire EDM machine.
compatible with system 3R-292.3p perfectly.
