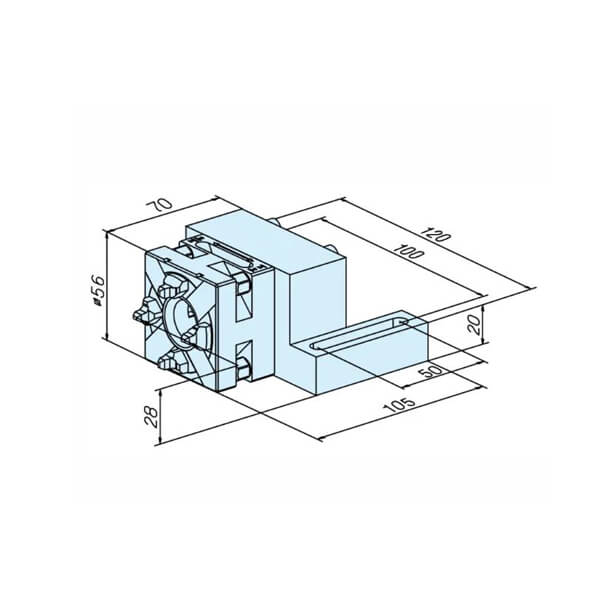

HPEDM EROWA Wire EDM machine chuck HE-P06628
compatible with erowa quick chuck 50 RSM UnoSet ER-022584
SPECIFICATIONS: material: stainless steel, anti-corrosion, stand wear and tear.
can be accurated clamping and
suitable for small parts.
the main body can be adjusted slightly
Application: Mount On Wire EDM machine, such as Sodick , Makino, Agie Charmilles EDM machine,
Repeatability: 0.002mm-0.005mm
Marterial: stainless steel
using on EROWA system perfectly.
HPEDM EROWA Wire EDM machine chuck HE-P06628
compatible with erowa quick chuck 50 RSM UnoSet ER-022584
specifications: Chuck 50 on adapter plate
Application: Mount On Wire EDM machine. fitted
directly to any machine bases with
attachment boreholes in a 100 mm grid.
compatible with erowa system ER-022584 perfectly.
