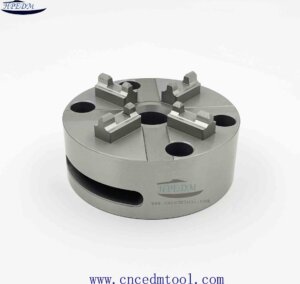

HPEDM® EROWA Quick manual chuck 100  ER-036345

Description

HPEDM EROWA Quick manual chuck    HE-C06422

compatible with EROWA  quick  manual chuck  ER-036345

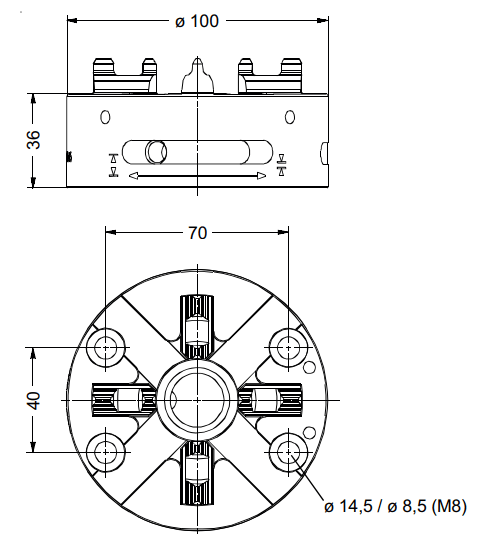

SPECIFICATIONS:

System size 100, manual, corrosion‑resistant.connection：With four M8 bolts supplied

Clamping power： 10000 N.

Application:

machining  EDM brass electrode , graphite electrode, Using on cnc machine center .compatible with EROWA ITS CHUCK  system perfectly

For CNC  machine center, EDM, wire EDM machine,

To be fitted directly to workpiece and EDM electrodes, power chuck

To  be used on flat chucks

 Using on EROWA system perfectly.

Repeatability:   0.002mm-0.005mm
