HPEDM EROWA Vise PalletSet W 100 mm HE-E06733 / ER-025896
Compatible with ER-025896

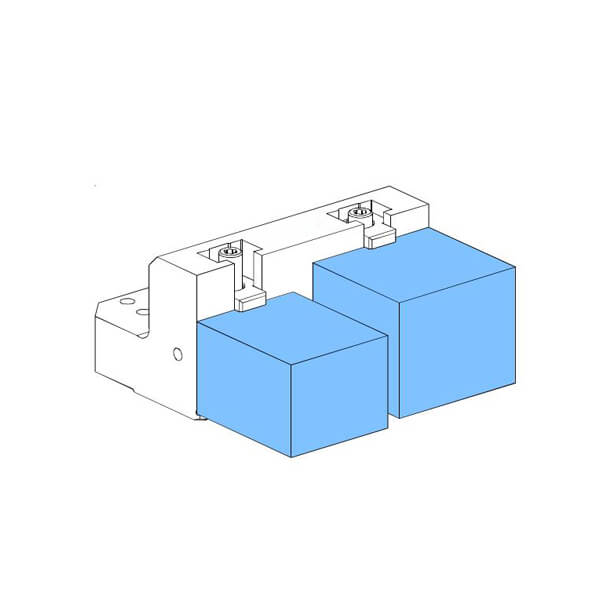

Version:Vise with fixed Z‑lip and jaws fitted from above.
Application: To clamp workpieces of up to 100 mm in height.

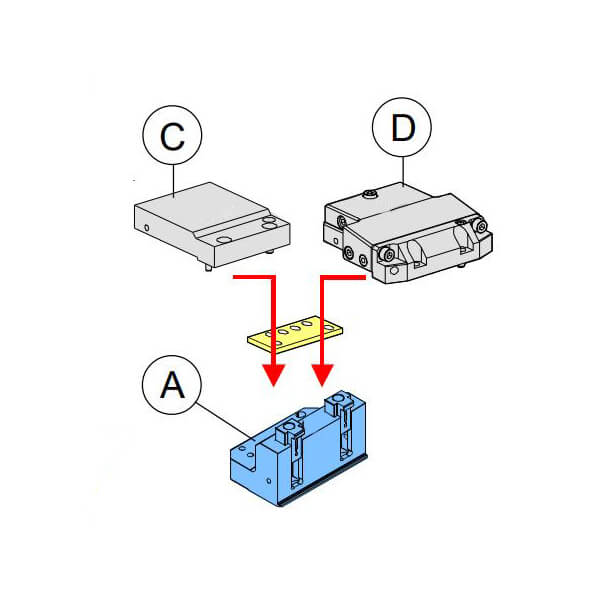

To be fitted to fixholder or pendulum holder.

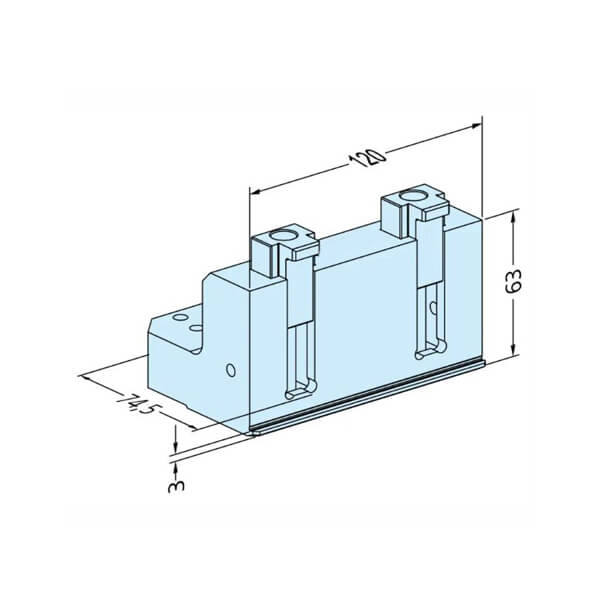

Max. clamping range: 150 x 150 x 100 mm.
Max. load 12 kg.
Mount On Wire EDM machine, such as Sodick , Makino, Agie Charmilles EDM machine,
Repeatability: <0.005mm
Marterial: 440C
using on EROWA system perfectly.
HPEDM EROWA Vise PalletSet W 100 mm HE-E06733
Compatible with ER-025896
Version:Vise with fixed Z‑lip and jaws fitted from above.
Application: To clamp workpieces of up to 100 mm in height.
To be fitted to fixholder or pendulum holder.
Max. clamping range: 150 x 150 x 100 mm.
Max. load 12 kg.
Mount On Wire EDM machine, such as Sodick , Makino, Agie Charmilles EDM machine,
Repeatability: <0.005mm
Marterial: 440C
using on EROWA system perfectly.
