Description

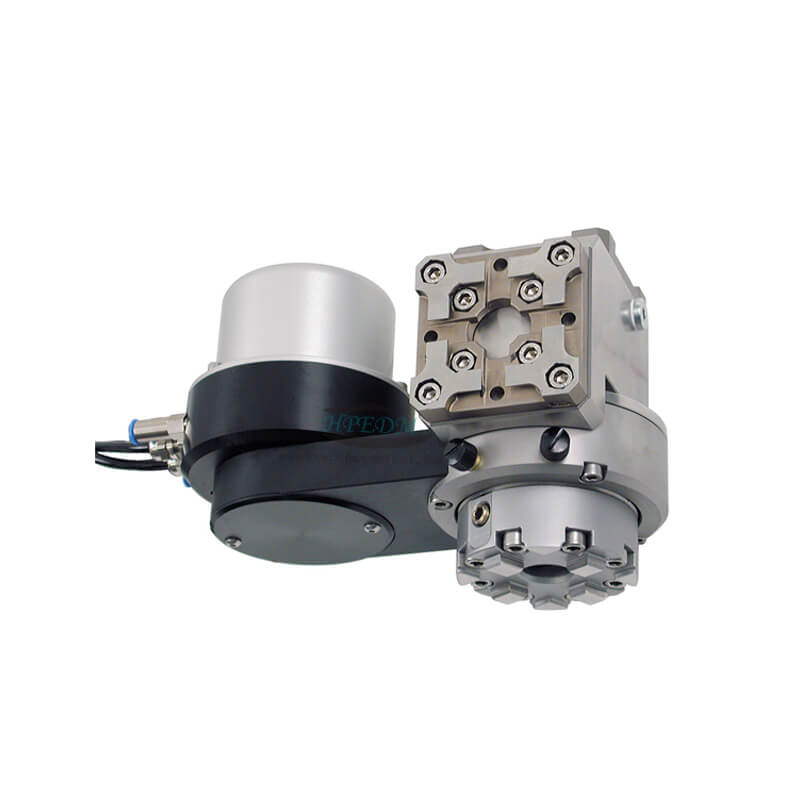

HPEDM system 3R Macro Rotating spindle HE-R07088
Compatible with 3R-6.600-VHS
Application: For clamping in a horizontal or vertical Macro chuck.
Flushing via the spindle or an external flushing connection.
-
- Speed range 60-1500 rev/min.
- Control unit included
- Required drawbar 3R-605.2, but 3R-605.2RS in wire EDM machines
- Rust resistant
- Immersible
- Maximum electrode weight 5 kg
- Maximal flushing pressure through the chuck: 40 bar
- Weight 9.5 kg.
