HPEDM® 3R Manual chuck, Macro 3R-602.27-1

Description

HPEDM® system 3R    Manual chuck, Macro    HE-R06962

Compatible with 3R-602.27-1

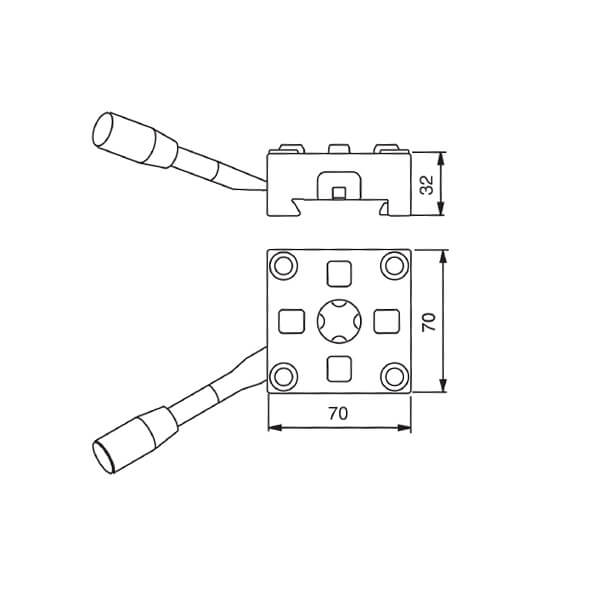

Chuck adapter with lever for Macro holder in the WEDM

system. Supplied with drawbar.

Note: When mounted on the reference element, the two

clamping jaws must be tightened with the same torque, 4 Nm.

• Required drawbar 3R-605.27RS
• Clamping force 6000 N
• Fixed index positions 4×90º
