HPEDM® 3R user kit super vice 3R-272HP 3R-292.3 3R-293.3 3R-200.1J-U

Description

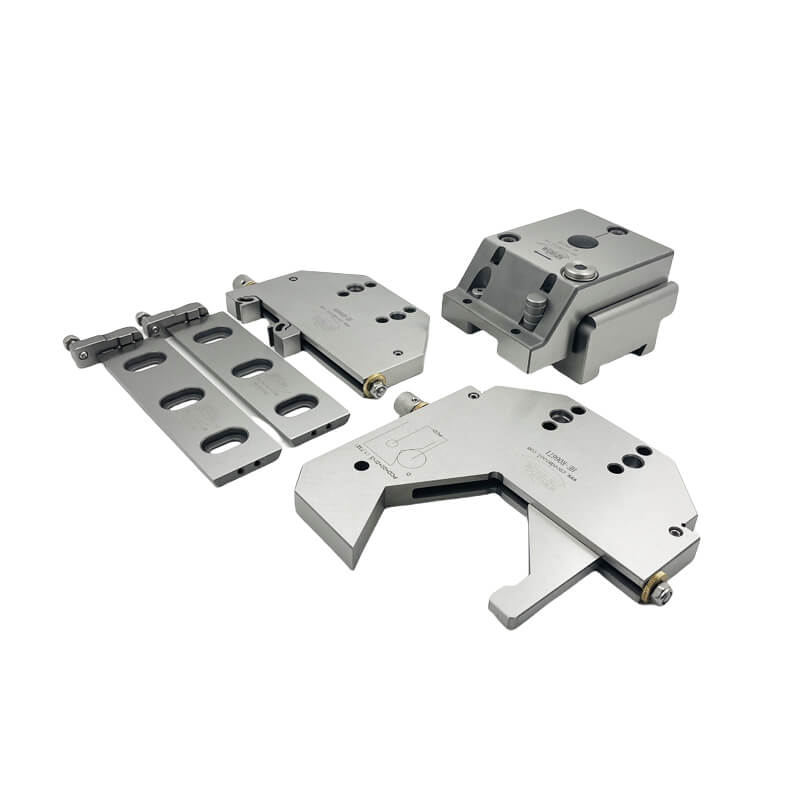

HPEDM® system 3R WEDM  user kit super vice  HE-R06749F

Compatible with 3R-272HP /  3R-292.3 / 3R-293.3 /3R-200.1J-U

Included:

3R-272HP Levelling adapter HP  1 pcs

Levelling adapter, WEDM
For manual mounting of SuperVice, a holder or a
fixture in the WEDM system.
Note: All holders including HP can be mounted.
Note: Also fits the ICS system if the clamping jaw
(17850-00) is changed.
• Adjustable in three axes
• Supplied without drawbar
• Recommended maximum load 15 kg



3R-292.3   Super Vice         1pcs

For clamping rectangular workpieces up to 100 mm.

• Tightening torque 7 Nm



3R-293.3 Super Vice,  1 pcs

Super Vice

Vice for clamping round workpieces 8-90 mm.

• Recommended maximum workpiece weight 7 kg
• Tightening torque 8 Nm

3R-200.1J-U   Reference element  WEDM   2 pcs

Universal 150 mm reference element, with oval holes,

for all machines that have M8 holes in the machine

table, 30 to 40 mm from the edge of the table.
