HPEDM® C axis for EDM machine

Description

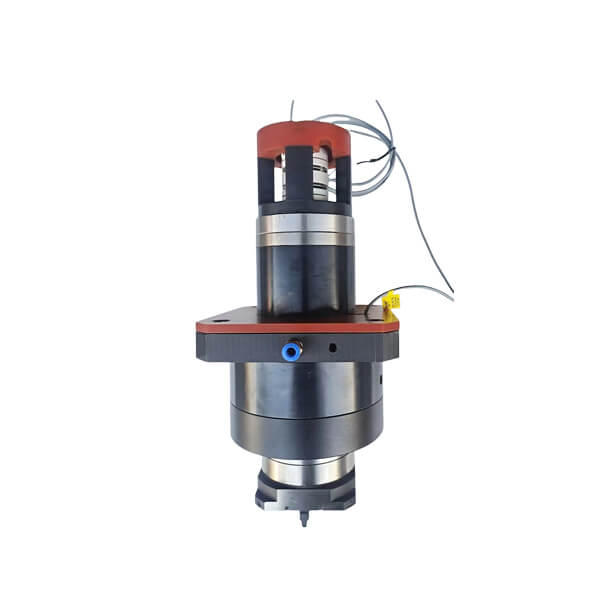

HPEDM C axis for EDM machine   HE-R07006

SPECIFICATIONS:

The C-axis does not include the motor,  you need to fix the motor by yourself as per your machine requirement

The C axis fixed EROWA chuck or 3R chuck as your requirement.

Application:

Scope of usage

This C-axis has the functions of automatic indexing and synchronous machining,

and can be used for helical machining, positioning machining/servo, thread

machining and profiling machining. The C-axis does not include the motor, the

drive is prepared and installed by yourselfr, the motor uses a 60 servo motor,

200W or 400W

Air pressure：5.5－7.5 bar

Technical data

Weight：about 10 Kg

Max Bearing Torque (Without Brake) : 8 Nm

Maximum machining current : 160 A   when not rotating,                80 A  when rotating

maximum speed:  35 rp m

Indexing accuracy: ±0.006°

Gearbox ratio: 81：1

  chuck clamp power:  4500 N(5 bar )

 Maximum electrode weight: 10Kg

 Maximum electrode Size:  120×120×120 mm

 Maximum circular runout:  center 0.005 mm/60mm



Repeatability:   0.002mm -0.005mm
