HPEDM CNC Universal precision working table

Description

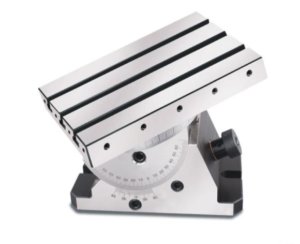

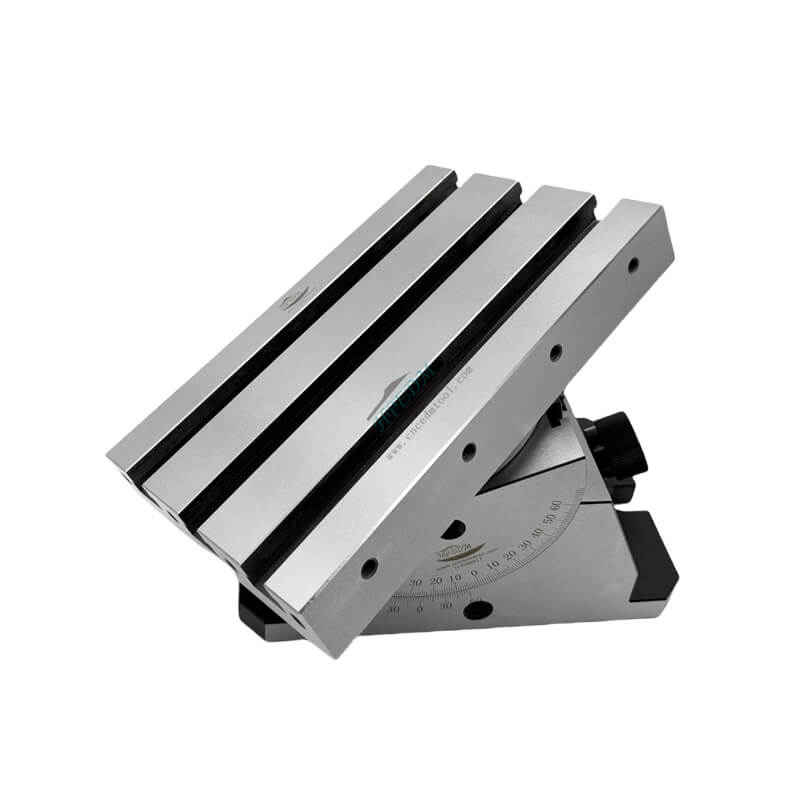

HPEDM Stainless steel CNC Universal precision working table  HE-R06917

Specifications:

1. The working table  can be rotated 360 degree in horizontal direction and can be tilted  up to 45 degree on left and right size in verticaldirection.

2.  The body was made of stainless steel,  It was subzero treatment after heat treatment and was  grinded . Which makes it more stabiliztion.

Size: 260*180*175mm

Application: Mount On   grinding machine/CNC machine  for clamping workpiece

Parallelism: 0.003mm/100mm       Squareness: 0.005mm/100mm

Hardness: HRC 50-55

Marterial:  Body :  stainless steel 440C
