Description

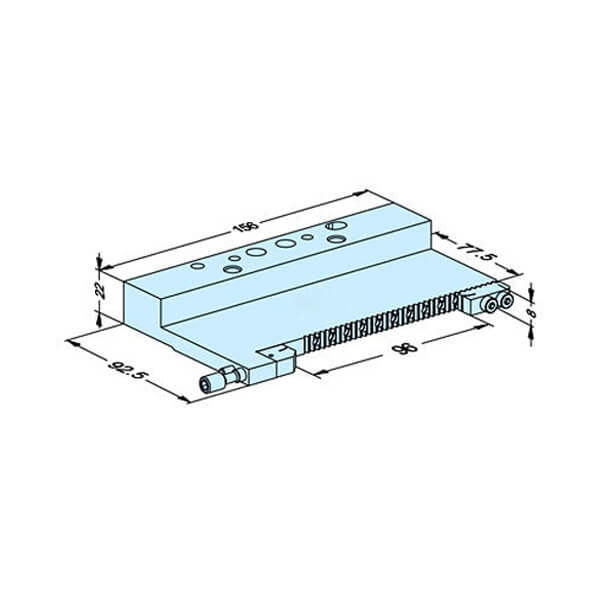

HPEDM EROWA Flat vise 8 mm PalletSet W HE-P06626
Compatible with ER-054922
SPECIFICATIONS:
Version : One movable jaw and one fixed jaw. Hardened, ground
and corrosion-resistant.
Clamping : 0 – 96 mm.
Application Lateral clamping of workpieces machined outside of up
to 96 mm. To be fitted to fixholder or pendulum holder.
Note: Max load: 5kg
Mount On Wire EDM machine, such as Sodick , Makino, Agie Charmilles EDM machine,
Repeatability: 0.002 mm-0.005mm
Marterial: stainless steel
using on EROWA system perfectly.
