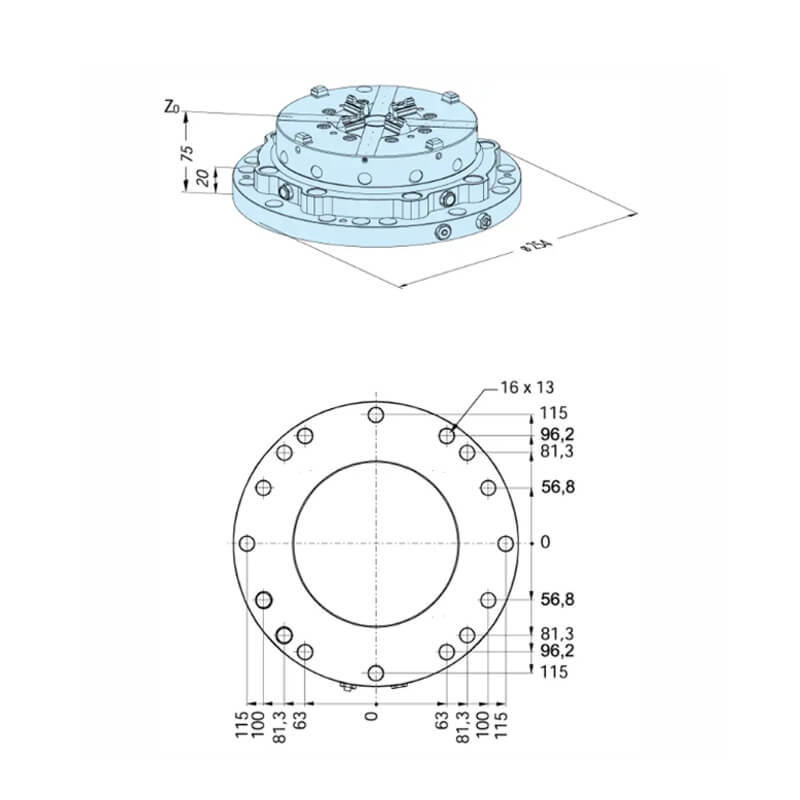

HPEDM® EROWA Production chuck 210 combi ER-030478

HPEDM  CNC machine EROWA Power Chuck HE-E06977

Compatible with EROWA chuck ER-030478

Version Chuck for strong machining forces in chip-cutting

operations. PC 210 with integrated PowerChuck P.

Connections Laterally or from below with two lines.

Operation With air gun, laterally. With control unit, through

the two connections laterally or from below.

Application On milling machines, lathes, grinding machines and

EDM centers. To clamp pallets PC 210, ITS pallets

ø 148, ø 115 and ITS 50 holders.

repeatability: 0.002mm.

Application: for processing  sinker EDM brass electrode ,

graphite electrode, mounted on CNC machine center .

suitable for Injection mould making industry.

for CNC machining, EDM die sinking, Electrical  discharge machining.
