Description

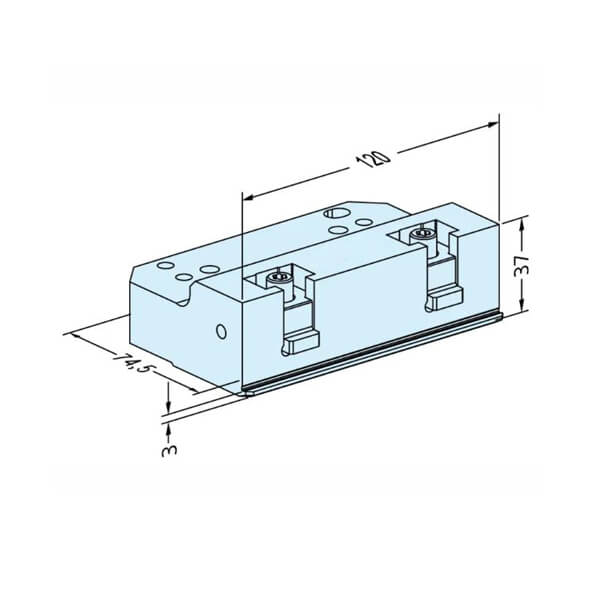

HPEDM EROWA Vise PalletSet W 40 mm HE-V06621
Compatible with ER-025895
Version:Vise with fixed Z‑lip and jaws fitted from above.
Hardened and ground
Application: To clamp workpieces of up to 40 mm in height.
To be fitted to fixholder or pendulum holder.
Lateral clamping of workpieces of 0 ‑150 mm machined
from the outside.
Max. clamping range: 150 x 150 x 40 mm.
Max. load 12 kg.
Mount On Wire EDM machine, such as Sodick , Makino, Agie Charmilles Wire EDM machine,
Repeatability: <0.005mm
Marterial: 440C
using on EROWA system perfectly.
