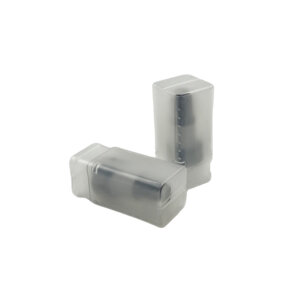

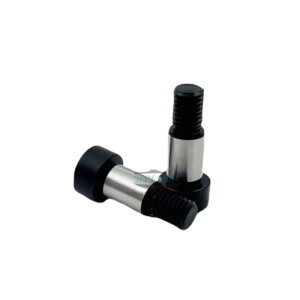

HPEDM lang centering stud for quick point pallet

HPEDM  lang centering stud for quick point pallet    HE- R06822.m10
SPECIFICATIONS:
Size: D18*40.8mm .
Accuracy: 0.005mm
Marterial: Alloy  steel
Application:
1. Connect the two parts through the positioning part of the centering screw so that they cannot loosen to  achievethe  positioning  purpose

2. The centering stud passes through the quick-change fixture installation hole and locks into the bottom plate holeuntil the positioning part is pinned into the bottom plate, and tightens the stud.

Description

HPEDM lang centering stud for quick point pallet    HE- R06822.m10
SPECIFICATIONS:
Size: D18*40.8mm .
Accuracy: 0.005mm
Marterial: Alloy  steel
Application:
1. Connect the two parts through the positioning part of the centering screw so that they cannot loosen to  achievethe  positioning  purpose

2. The centering stud passes through the quick-change fixture installation hole and locks into the bottom plate holeuntil the positioning part is pinned into the bottom plate, and tightens the stud.
