Description

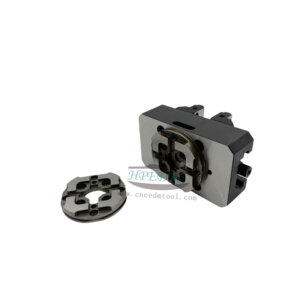

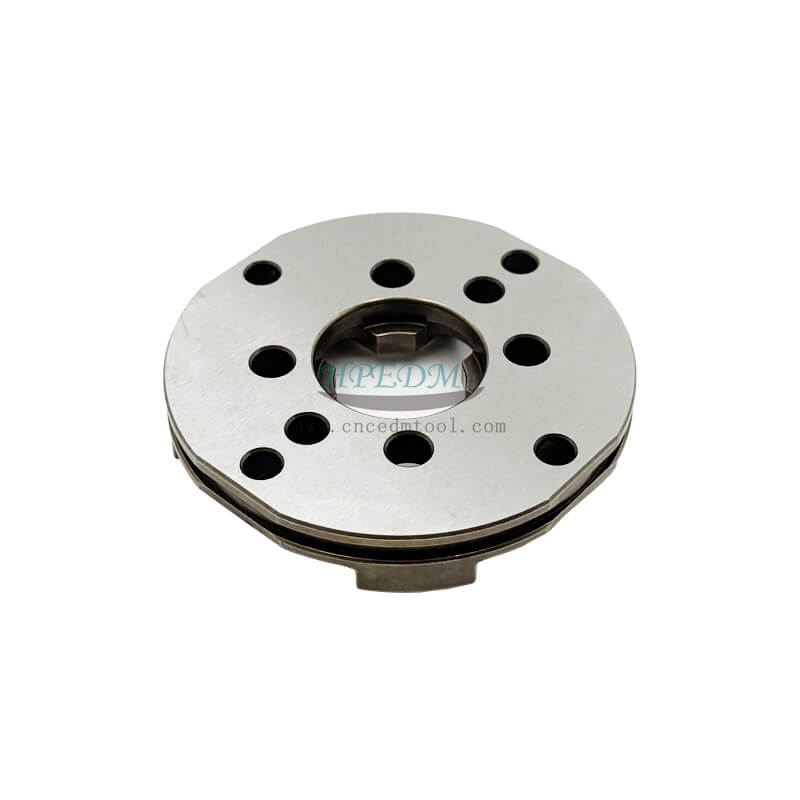

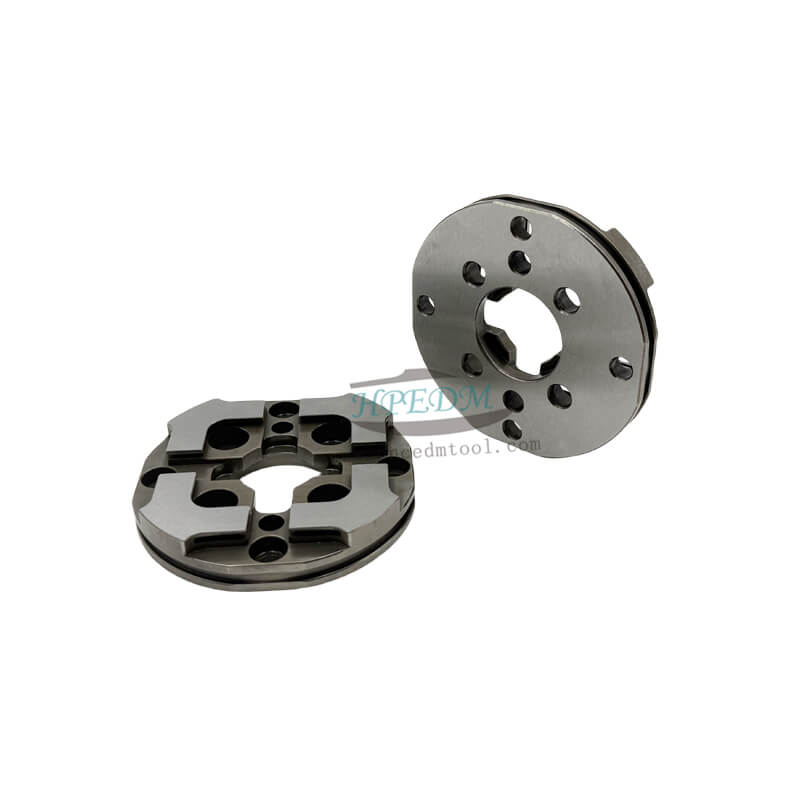

HPEDM System 3R 3R-651.75E-P Pallet Ø75 mm, Macro HE-R06784
Specifications:
Hardened X, Y & Z-references. Clearance holes for fixing screws.
Note: Must be mounted on the workpiece/fixture before it is locked
in a chuck.
- Parallel-ground top and bottom faces
- Fixed index positions 4×90º
- Rust-resistant
- Supplied in sets of 10
- Weight per set 3.0 kg
Application: on CNC EDM machine for EDM die sinking.

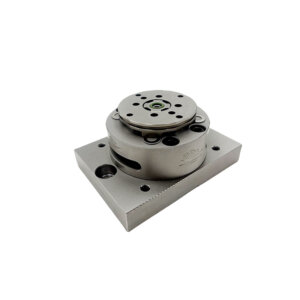

mount electrodes and workpieces on 3R chuck system
Mount: With bolts or clamps.
Repeatability: 0.002mm-0.005mm
