HPEDM® System 3R C 619 680, Clamping frame

Description

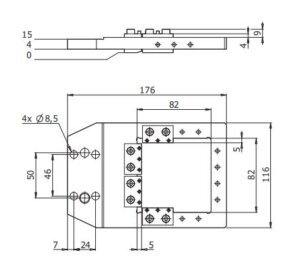

HPEDM System 3RC 619 680, Clamping frame  HE-R06979

Compatible with 3R-C 619 680

Carrier for flat round or cubic workpieces up to 80×80 mm.

Note: Mounts on HP, Magnum or MacroTwin levelling adapter.

• Functional height 13 mm
• Clamping range round or cubic up to 80 mm /

maximum workpiece height 12 mm

• Maximum workpiece weight 1.5 kg
• Maximum workpiece dimensions Ø 80 mm or 80×80 mm
• Weight 0.9 kg.
