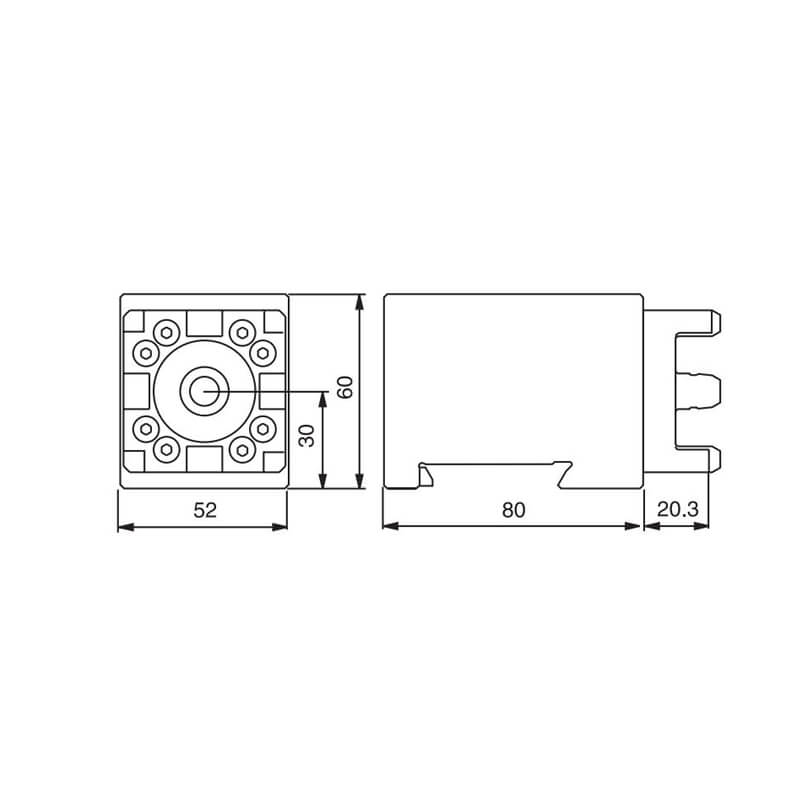

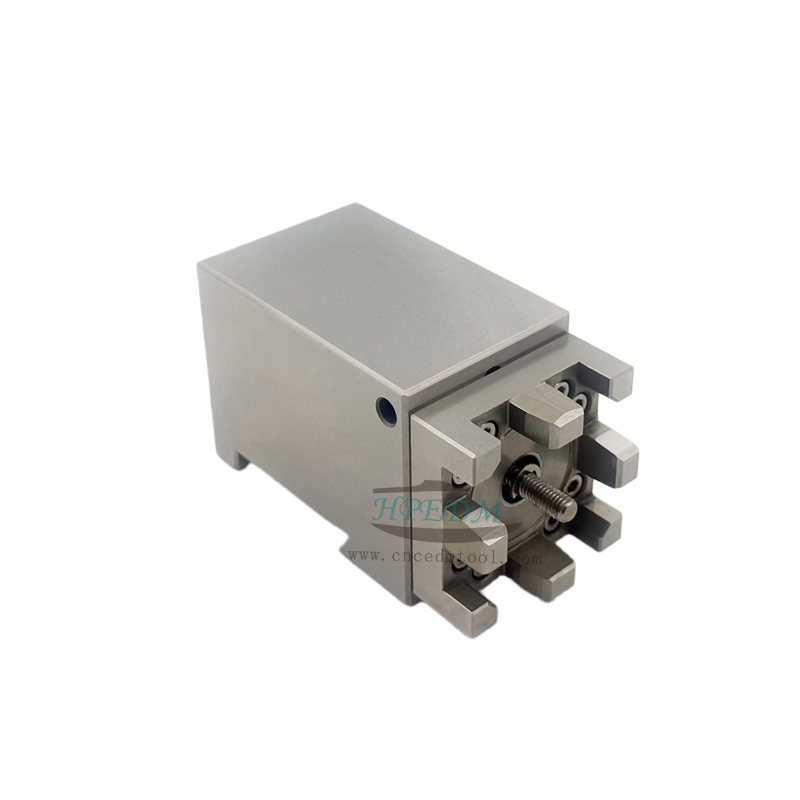

HPEDM® system 3R manual chuck Macro 3R-622.2

HPEDM system 3R manual chuck Macro  HE-R06937

Same as  3R-622.2

Specifications:

  • Tightening torque 7 Nm
  • Clamping force 6 kN
  • Fixed index positions 4×90º
  • Supplied with drawbar 3R-605.5RS



Application: Chuck adapter for Macro holders in the WEDM system.

 Repeatability:  +/-0.002mm

Description

HPEDM system 3R manual chuck Macro  HE-R06937

Same as  3R-622.2







Specifications:

  • Tightening torque 7 Nm
  • Clamping force 6 kN
  • Fixed index positions 4×90º
  • Supplied with drawbar 3R-605.5RS



Application: Chuck adapter for Macro holders in the WEDM system.

 Repeatability:  +/-0.002mm
