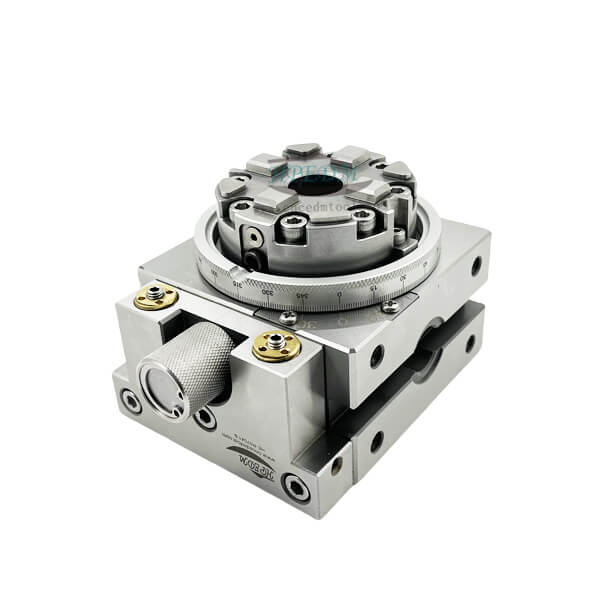

HPEDM® System 3R 3R-217-1 WEDM Manual chuck (3R block), Macro

HPEDM 3R 3R-block, Macro, Wire EDM   HE-R07041.B

Compatible with 3R-217-1



Specifications:

Manual Macro chuck. For vertical or horizontal mounting on the machine table,

or alternatively the WEDM system with the aid of 3R-SP6435

  • Tightening torque 6 Nm
  • Clamping force 6 kN
  • Required drawbar 3R-605.2RS
  • Fixed index positions 24×15°
  • Vernier scale
  • Weight 5.5 kg.

Repeatability: +/- 0.002mm



Description

HPEDM 3R 3R-block, Macro, Wire EDM   HE-R07041.B

Compatible with 3R-217-1

Specifications:

Manual Macro chuck. For vertical or horizontal mounting on the machine table,

or alternatively the WEDM system with the aid of 3R-SP6435

  • Tightening torque 6 Nm
  • Clamping force 6 kN
  • Required drawbar 3R-605.2RS
  • Fixed index positions 24×15°
  • Vernier scale
  • Weight 5.5 kg.

Repeatability: +/- 0.002mm
