Description

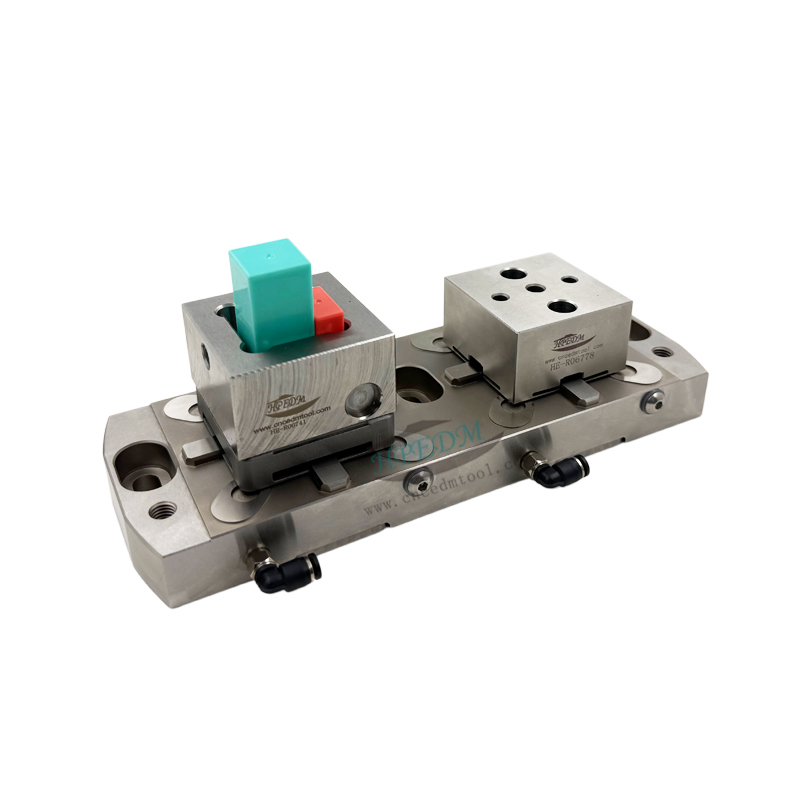

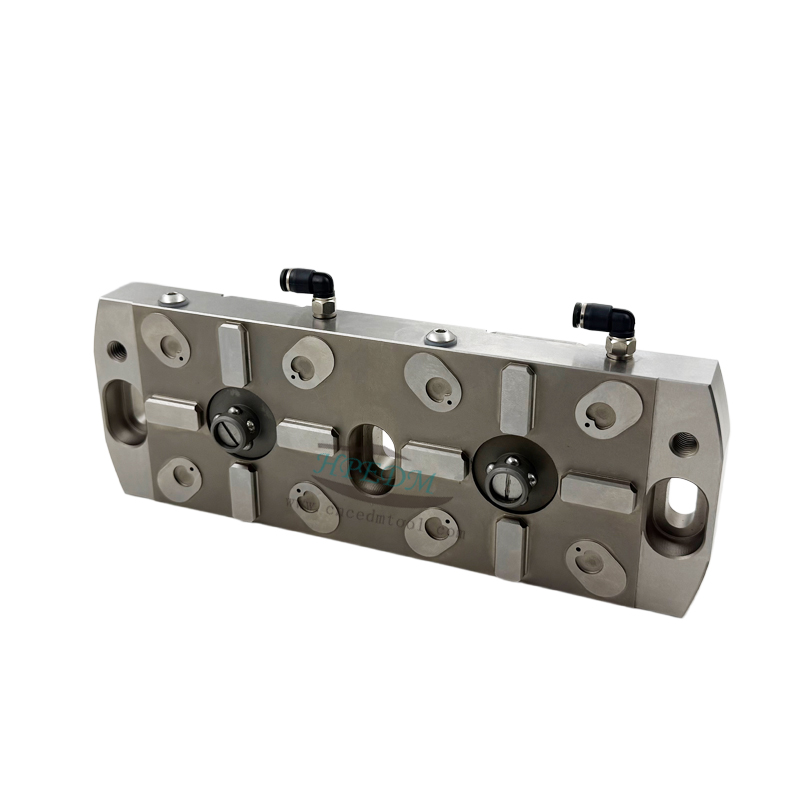

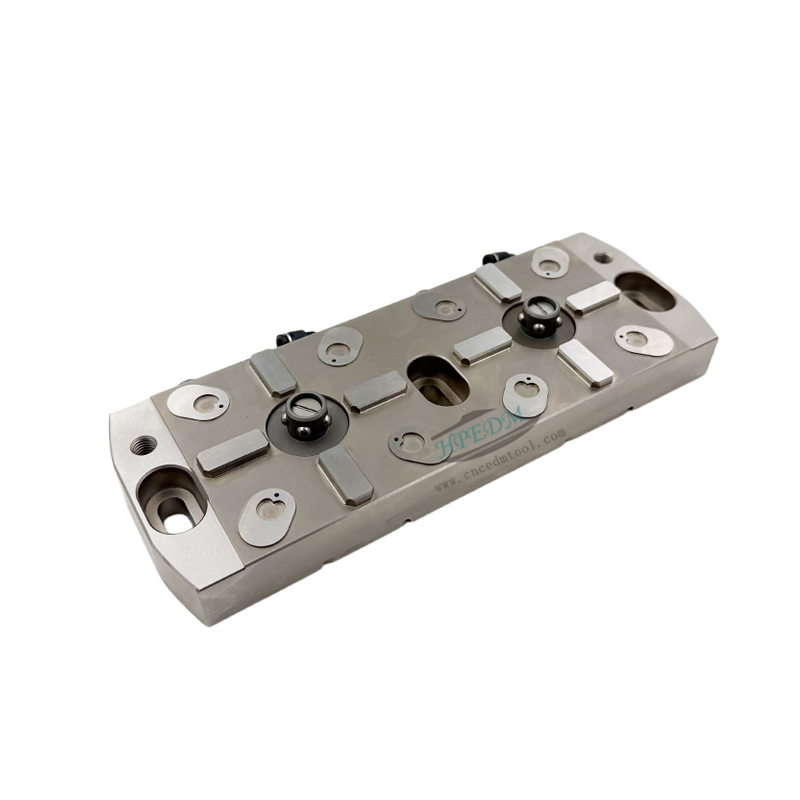

HPEDM system 3R MacroTwin Pneumatic chuck HE-R06972
compatible 3R-602.12-1
Specifications:
Pneumatic chuck for Macro or MacroTwin. Horizontal mounting
on the machine table. Supplied with two drawbars 3R-605.10
and protective covers.
Note: On automatic changing with WorkPal -MacroTwin holders only.
- Fixed index posifions 4×90°
- Air-blast cleaning of the Z-references
- Clomping force 2×6700 N
- Weight 1.5kg
Application: On CNC EDM machine center processing EDM electrode for plastic injection mould making industry.
Mount: With bolts or clamps.
Repeatability: +/- 0.002mm
