HPEDM® 3R macro manual chuck

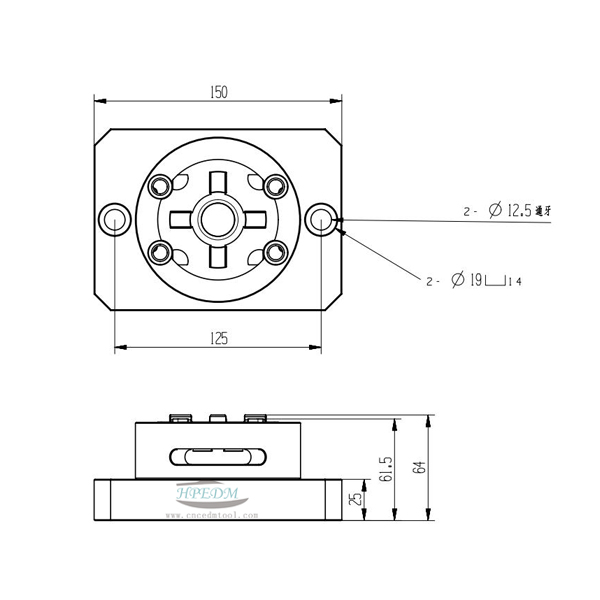

HPEDM system 3R macro manual chuck with plate  HE-R06647

Specification: Manual chuck With plate , Macro Std
Required drawbar 3R-605.2
• Fixed index positions 4×90°
• Flushing connect
Mount:  With bolts or clamps.

Application:     On CNC machine center processing EDM electrode for mould industry

Repeatability: 0.002mm

used on system 3R perfectly

HPEDM 3R CNC EDM  machine  manual chuck  for sinker EDM electrode die sinking

mouted  on sinker EDM machine Head, With 3R pallet 54*54mm .

suitable for plastic injection mould making industry.

Be used on system 3R EDM tooling system for EDM die sinker , Electrical discharge machining



HPEDM specializes in CNC EDM tool which can be compatible with system 3R EDM and WEDM tooling system. Repeatability: 0.002mm, very good price, saving 80% cost for you.

HPEDM 3R chuck includes manual chuck, pneumatic chuck for CNC machine, EDM machine, EDM die

sinking, EDM machining,
