Description
HPEDM system 3R manual short drawbar HE-R06652
Specifications:

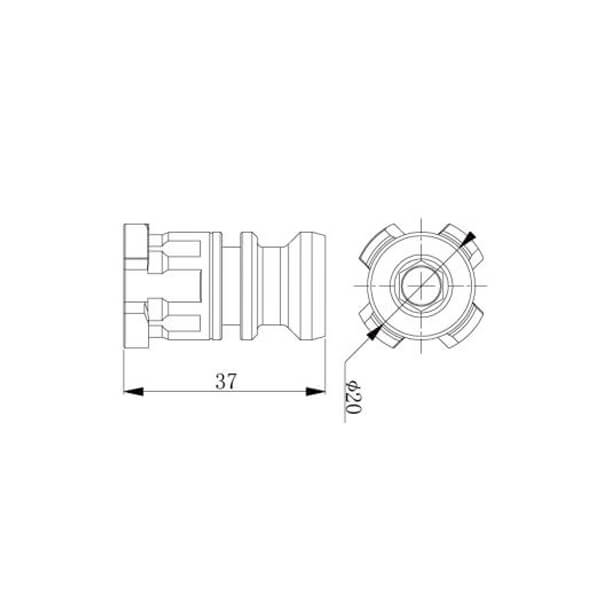

• Ø20×36.9 mm with flushing holes Ø7 mm
• Rust-resistant
• Supplied 1 pc/5 pcs/20 pcs.
compatible with 3R drawbar 3R-605.2RS/3R-605.2E/3R-605.2EE
Drawbars for 3R manual chuck
Application: fixed on 3R manual chuck ,
on CNC EDM machine for EDM die sinking. mount electrodes and workpieces
Mount: With bolts or clamps.
On CNC sinker EDM machine center processing EDM electrode for mould industry
Repeatability: 0.002mm
used on system 3R perfectly
HPEDM 3R EDM machine pneumatic chuck for sinker EDM electrode die sinking
mouted on 3R pallet and fixed on chuck
suitable for plastic injection mould making industry.
Be used on system 3R EDM tooling system for EDM die sinker , Electrical discharge machining
HPEDM specializes in CNC EDM tool which can be compatible with system 3R and erowa system EDM and WEDM tooling system. Repeatability: 0.002mm, very good price, saving much cost for you.

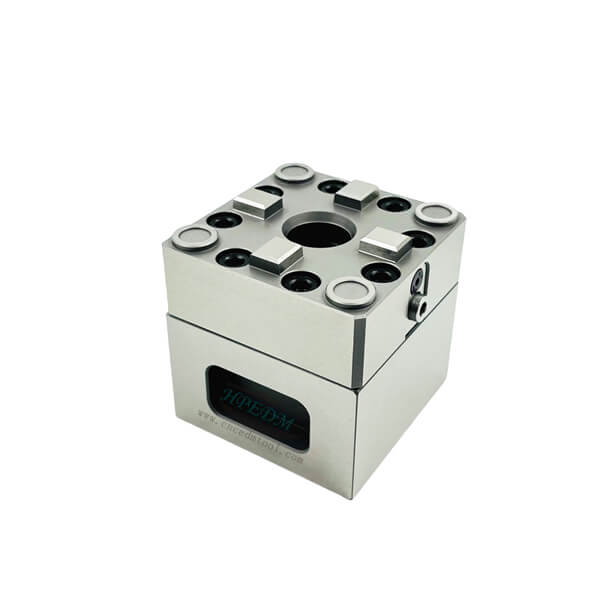

HPEDM 3R chuck includes manual chuck, pneumatic chuck for CNC machine, EDM machine, EDM die
sinking, EDM machining,
